SMA-Male to BNC-Female Coax Adapter for Yaesu, Icom & RT85
SMA-Male to BNC-Female Coax Adapter for Yaesu, Icom & RT85
HURRY! Selling out fast! Only 3 left in stock!
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
This high-quality adapter connects your Yaesu, Icom, or Retevis RT85 handheld radio to a BNC-style antenna or coax cable. It's the standard adapter needed for connecting "Japanese-style" handhelds to most scanner antennas, SDRs, and ham radio test equipment.
💡 Please Note: Sold as a Single Adapter

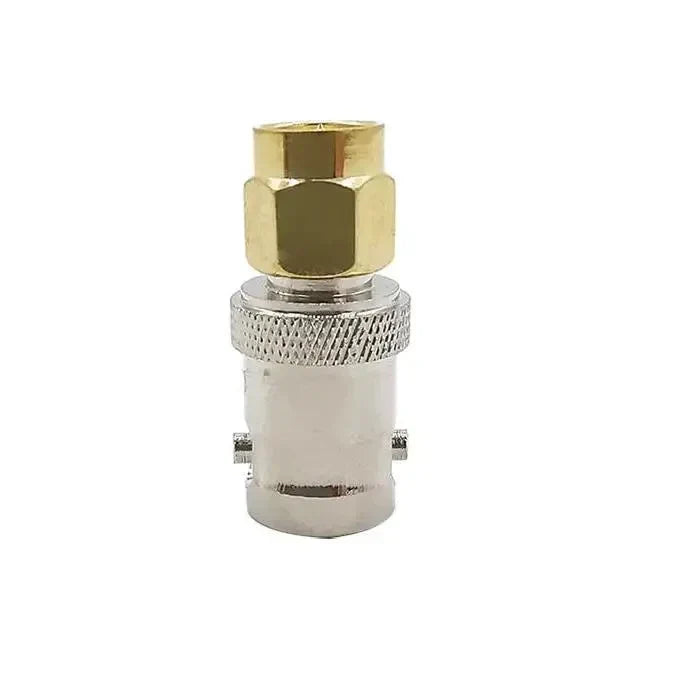

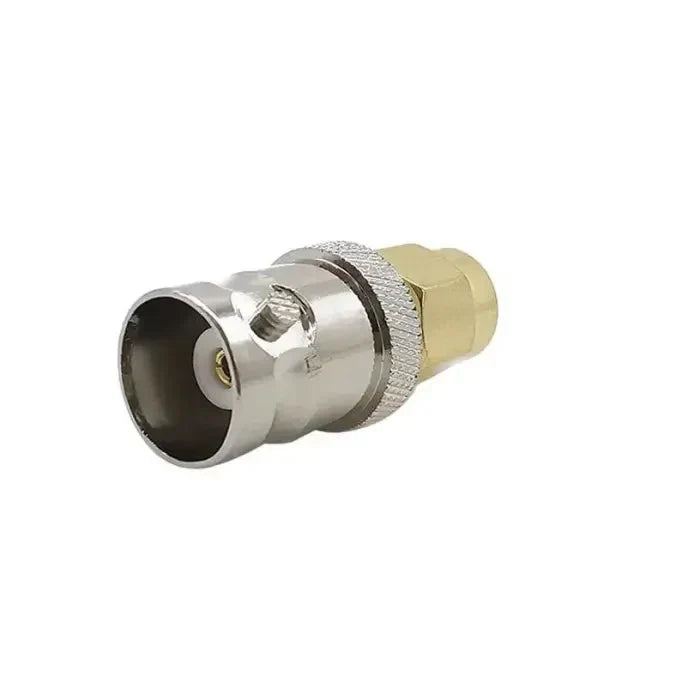

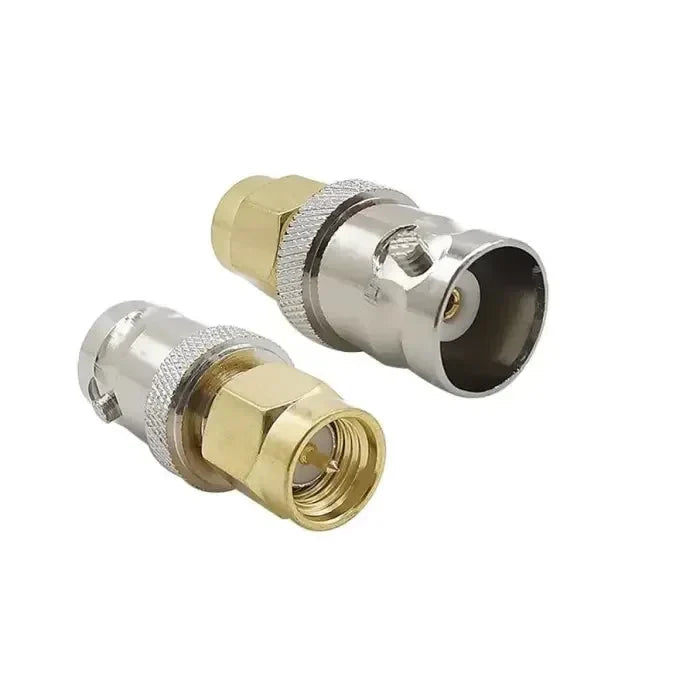

The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.
-
🔌
Connector 1: SMA-Male (With Pin): Features a center pin and threads on the *inside*. Designed to screw onto radios that have a center hole.
-
📡
Connector 2: BNC-Female: The standard "twist-lock" connector. Accepts any BNC-Male plug.
-
📻
Ideal for Hams & Hobbyists: The perfect adapter for connecting your handheld to a scanner, SDR (Software Defined Radio), or antenna analyzer that uses a BNC port.
✅ Fits Radios with a CENTER HOLE (SMA-Female Port)
This adapter fits handheld radios that have an SMA-Female antenna port (a port with a center hole that protrudes from the body).
Compatible Models Include:
- Retevis: RT85, RA89
- Yaesu: FT-60R, FT-70DR, VX-6R, FT-5DR
- Icom: ID-51, ID-52
- Other: Most Wouxun and TYT handhelds
⚠️ Does NOT Fit Baofeng or Quansheng
This adapter does NOT fit most Baofeng (UV-5R, UV-82) or Quansheng (UV-K5) radios, as they use the *opposite* (SMA-Male) connector on the radio body (with a center pin).
Technical Specifications
| Specification | Detail |
|---|---|
| Connector 1 (Radio Side) | SMA-Male (Center Pin, Threads Inside) |
| Connector 2 (Antenna Side) | BNC-Female (Center hole, twist-lock) |
| Impedance | 50 Ohm |
| Material | Nickel-plated brass |
Description
This high-quality adapter connects your Yaesu, Icom, or Retevis RT85 handheld radio to a BNC-style antenna or coax cable. It's the standard adapter needed for connecting "Japanese-style" handhelds to most scanner antennas, SDRs, and ham radio test equipment.
💡 Please Note: Sold as a Single Adapter
The main product image shows two adapters from different angles so you can see both connectors. This item is sold as a single (1) adapter.
-
🔌
Connector 1: SMA-Male (With Pin): Features a center pin and threads on the *inside*. Designed to screw onto radios that have a center hole.
-
📡
Connector 2: BNC-Female: The standard "twist-lock" connector. Accepts any BNC-Male plug.
-
📻
Ideal for Hams & Hobbyists: The perfect adapter for connecting your handheld to a scanner, SDR (Software Defined Radio), or antenna analyzer that uses a BNC port.
✅ Fits Radios with a CENTER HOLE (SMA-Female Port)
This adapter fits handheld radios that have an SMA-Female antenna port (a port with a center hole that protrudes from the body).
Compatible Models Include:
- Retevis: RT85, RA89
- Yaesu: FT-60R, FT-70DR, VX-6R, FT-5DR
- Icom: ID-51, ID-52
- Other: Most Wouxun and TYT handhelds
⚠️ Does NOT Fit Baofeng or Quansheng
This adapter does NOT fit most Baofeng (UV-5R, UV-82) or Quansheng (UV-K5) radios, as they use the *opposite* (SMA-Male) connector on the radio body (with a center pin).
Technical Specifications
| Specification | Detail |
|---|---|
| Connector 1 (Radio Side) | SMA-Male (Center Pin, Threads Inside) |
| Connector 2 (Antenna Side) | BNC-Female (Center hole, twist-lock) |
| Impedance | 50 Ohm |
| Material | Nickel-plated brass |
