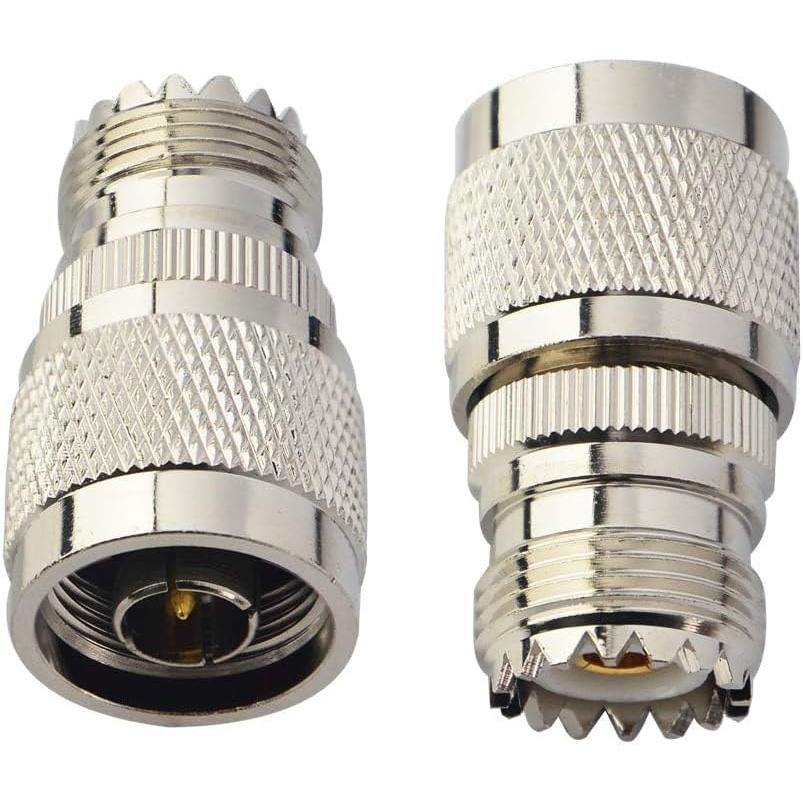

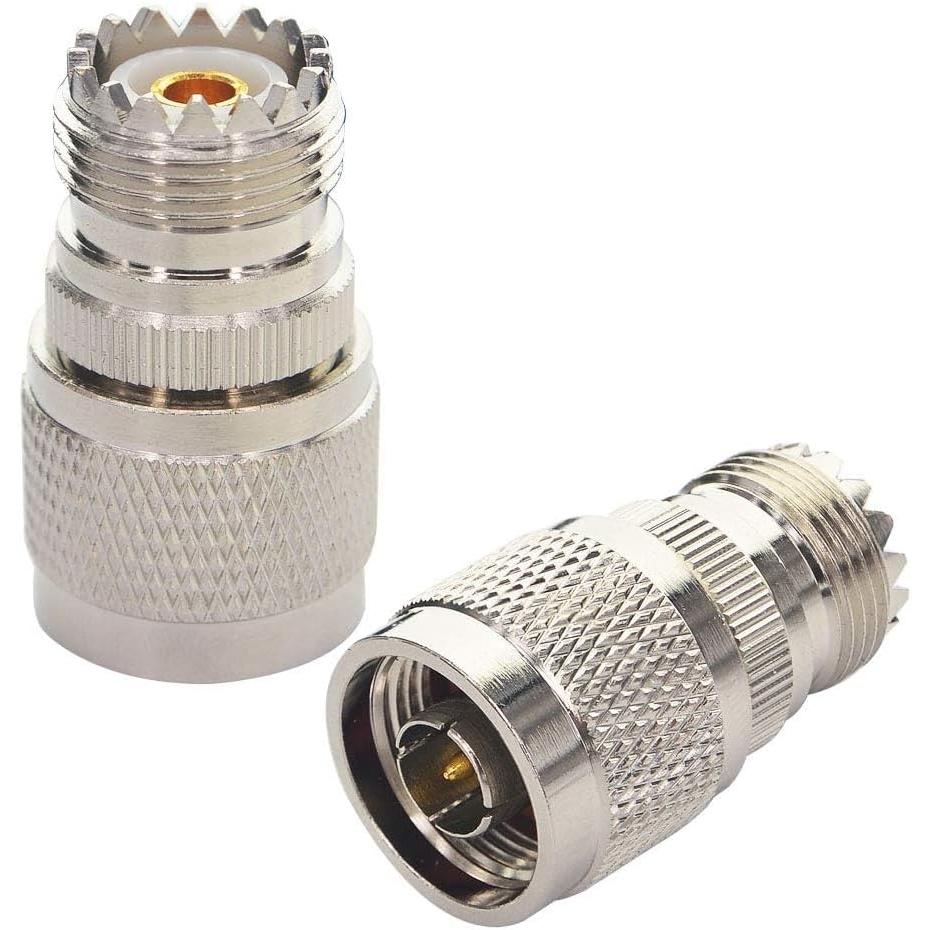

Type N-Male to SO-239 (UHF-Female) Coax Adapter
Type N-Male to SO-239 (UHF-Female) Coax Adapter
Couldn't load pickup availability
Why Buy?
Why Buy?
Not quite sure if this is right for you? Contact Us for expert advice!
Quick Specs
Quick Specs
Scoll down for more information about this item.
$5 Shipping or Local Pick-Up
This item qualifies for $5 Economy Shipping anywhere in Canada! Local to the Lower Mainland? You can also select Free Local Pick-Up in Surrey, BC at checkout.
Connect your standard PL-259 coax cables to high-performance gear with this heavy-duty adapter. It converts a Type N-Female port (common on repeaters, diplexers, and high-end base station antennas) into a standard SO-239 (UHF-Female) socket.
This is the essential "bridge" adapter for ham radio operators who use commercial-grade antennas or equipment but want to use their existing standard RG58 or RG213 coaxial cables.
💡 Please Note: Sold as a Single Adapter

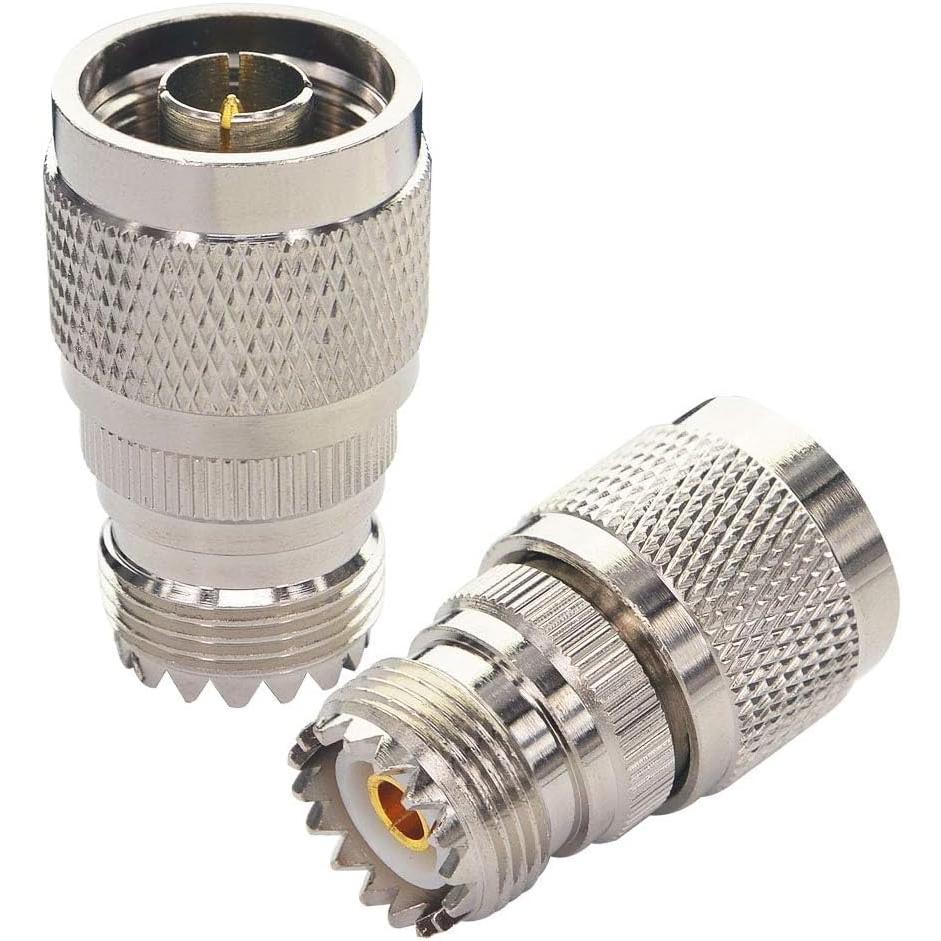

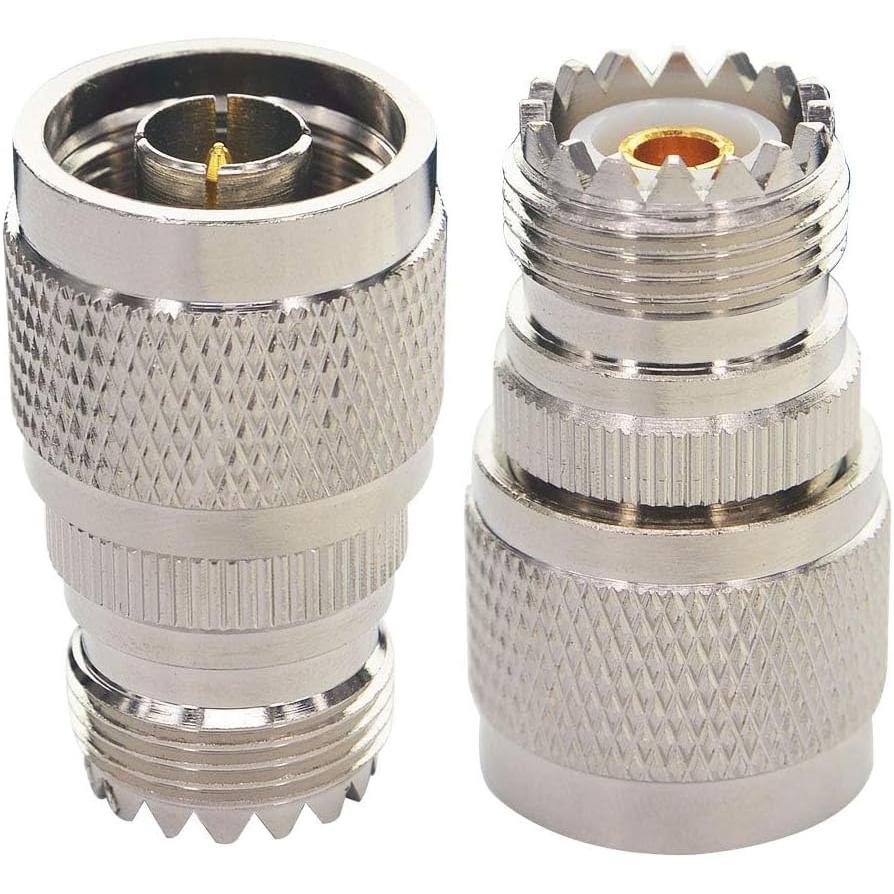

The product image may show the adapter from multiple angles for clarity. This item is sold as a single (1) adapter.
-
🔌

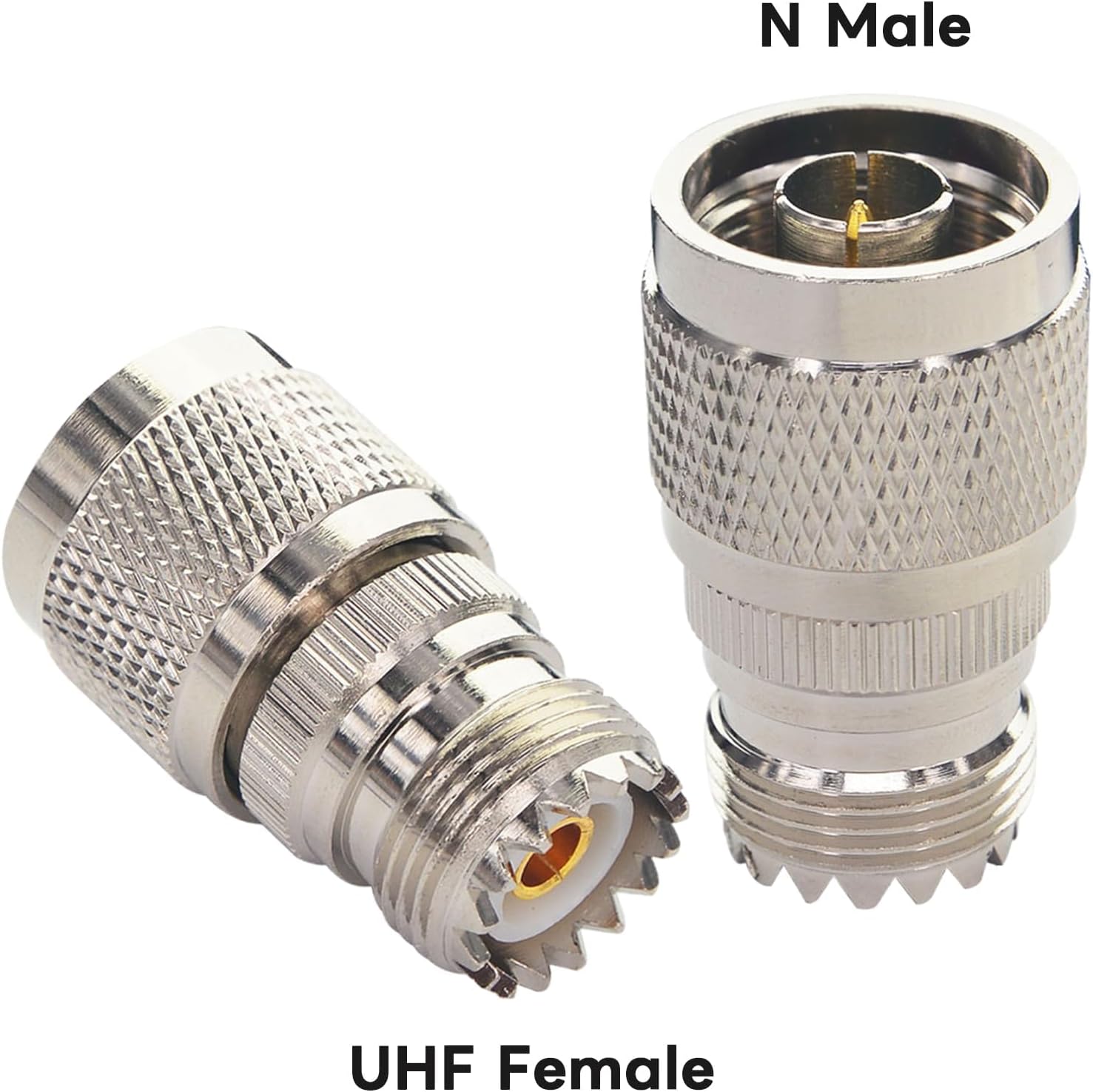

Connector 1: Type N-Male: A large, threaded connector with a center pin and weather-sealing gasket. Fits N-Female jacks found on base antennas and repeaters.
-
📡
Connector 2: SO-239 (UHF-Female): The standard "Mobile Ham / CB-style" socket. Accepts any standard PL-259 (UHF-Male) coax plug.
-
⚡️
Low Loss & High Quality: Made from nickel-plated brass with gold-plated contacts for maximum conductivity and signal integrity.
✅ Compatibility Check
This adapter is designed to screw onto a Type N-Female port.
Common Uses:
- Connecting a PL-259 cable to a base station antenna (e.g., Diamond X-Series)
- Connecting to a duplexer or repeater
- Adapting test equipment with N-connectors to standard ham coax
⚠️ NOT a TNC Connector

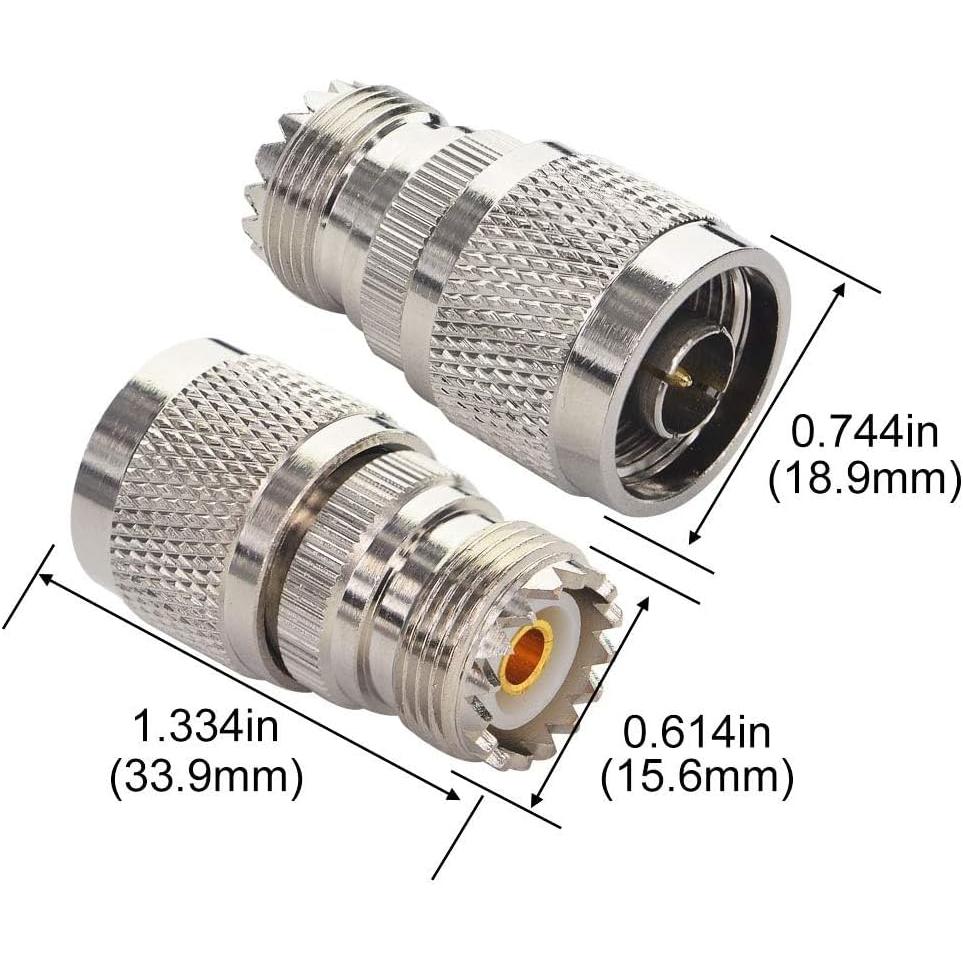

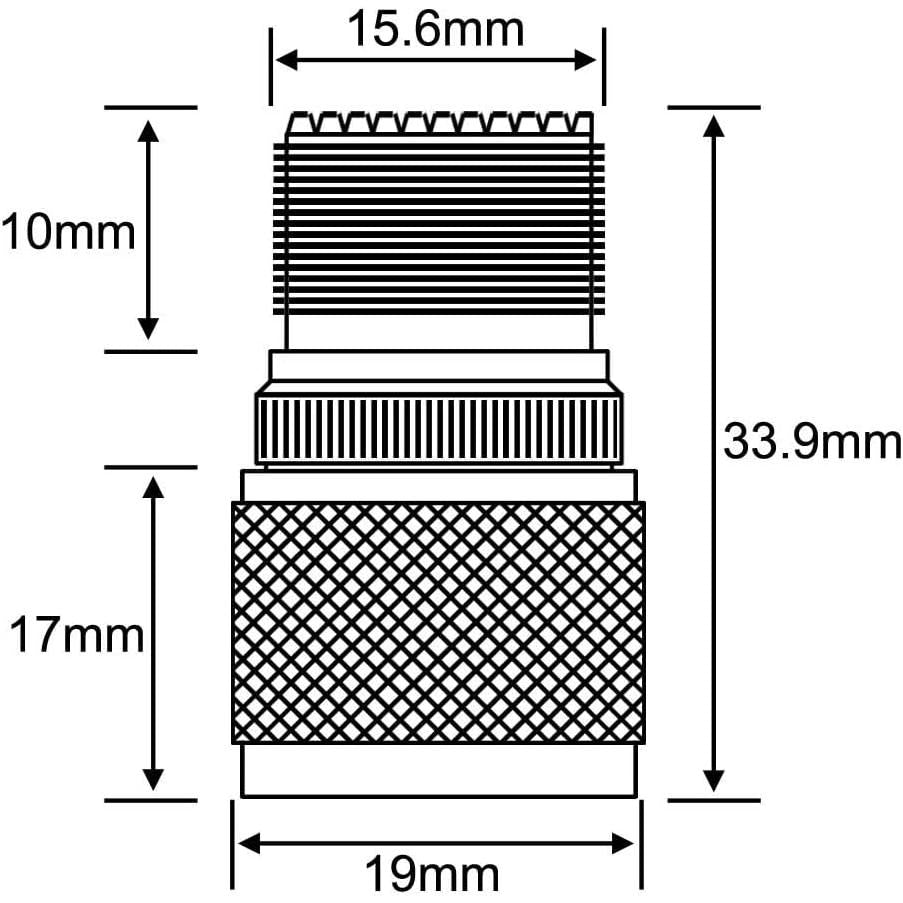

Please check your equipment carefully. This is a Type N adapter (large, approx. 5/8" diameter). It is NOT a TNC connector (which is much smaller, similar to BNC). It will not fit TNC ports found on some handhelds.

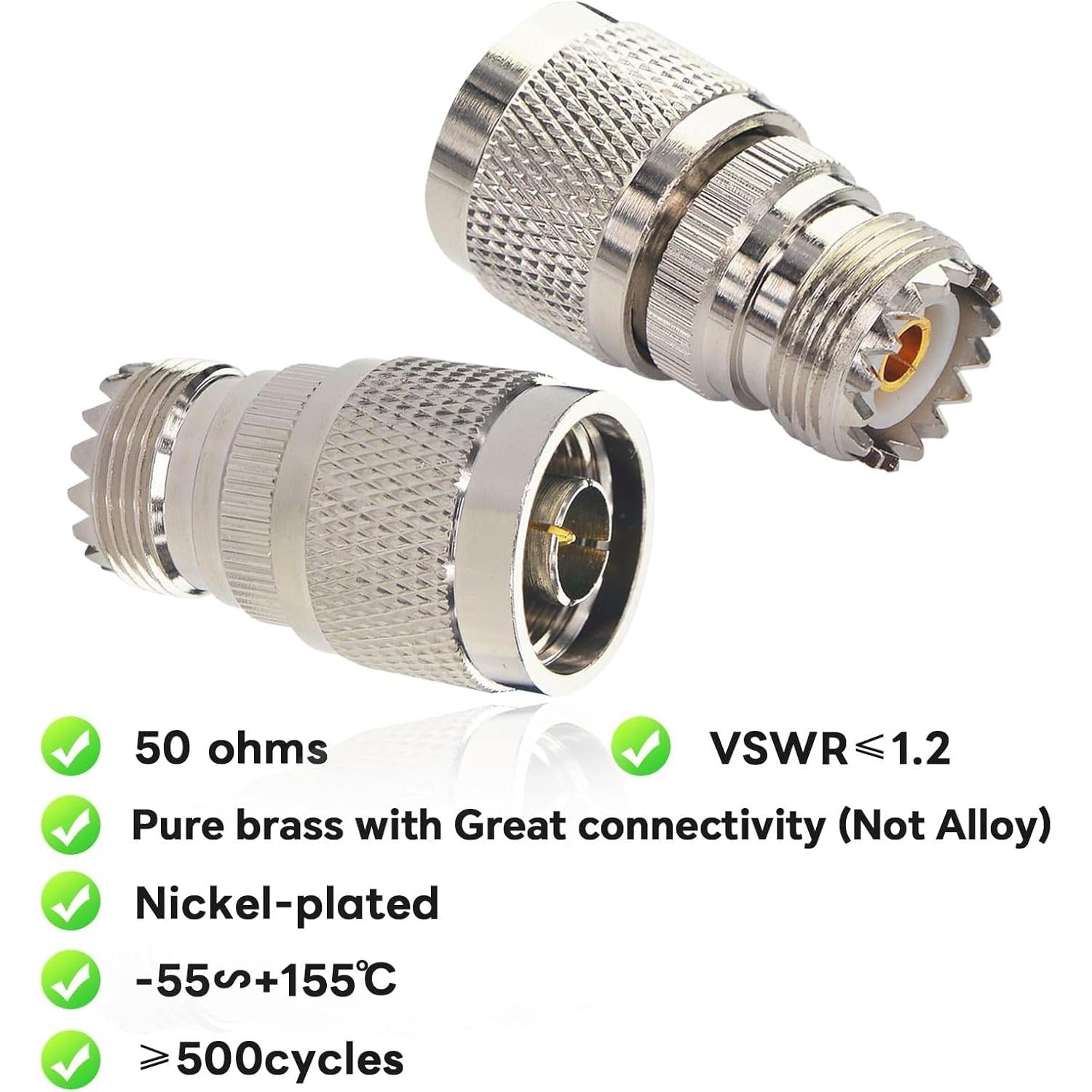

Technical Specifications
| Specification | Detail |
|---|---|
| Connector 1 (Device Side) | Type N-Male (Threaded, with Pin) |
| Connector 2 (Cable Side) | SO-239 (UHF-Female, accepts PL-259) |
| Impedance | 50 Ohm |
| Material | Nickel-plated brass / Gold-plated contact |
