Workman Electronics BS1 27 MHz 11M Indoor CB Base Antenna Dipole

• CB Radio Dipole
• 200W Maximum RF
• 12' RG58AU Coax with PL-259 on Each End
• Frequency Range: 11M 27MHz CB Band 40 Channels AM / LSB / USB
• 1/2 Wave
• 50 Ohm

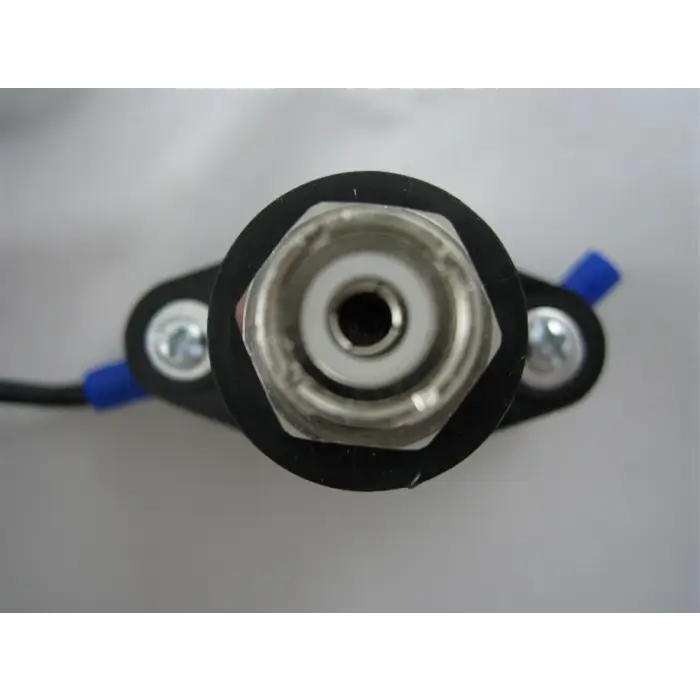

• Includes centre fed conductor with UHF (SO239) connector and two element spools.
• Perfect for indoors, in a den or shack!

As a Dipole, this CB base antenna should be mounted at about 16 Feet above ground, but could be installed as little as 8 Feet above ground. Second story or attic if using indoors. 2nd floor or above if in a condo or apartment.

Why does Fleetwood like this antenna?

• It's small and compact. Attic or Bedroom.
• It's a complete, ready to install, CB base antenna
• It's low cost and performs well
• Perfect for an apartment, condo, or townhouse.

Installation Suggestions:

Feed the coax out a window and then...

• Run the antenna along the gutter for great SWL properties
• Start at the gutter and run to the ground as a sloper dipole antenna
• Start at one end of the gutter and finish at the other end, with the middle of the antenna forming a "V" Dipole Antenna. (45o angles)
• Start in the middle and allow the ends of the antenna to head towards ground in an inverted V dipole antenna format (45o angles)
• Tree to tree or fence post to fence post. The higher above ground the better!

No window nearby?

Drill a Hole through the Ceiling of the radio Shack and put the Workman BS-1 CB Base Antenna Dipole Antenna In the attic. Use any of the above installs that meet your environment and individual band needs.

Apartment / Townhouse / HOA Dwellers:

Hang the Workman BS-1 Dipole Antenna at the very top corner of a bedroom and run the antenna long the lengths of the two nearest walls, with the excess left to drop to the floor. The antenna should resemble a sideways L (90o angles) Be sure to avoid electrical ceiling lights!

The Workman BS-1 Dipole Antenna is Compact, Complete, and ready to Install!

Fleetwood Digital wants to be your first choice for CB base antennas for sale in Canada.
